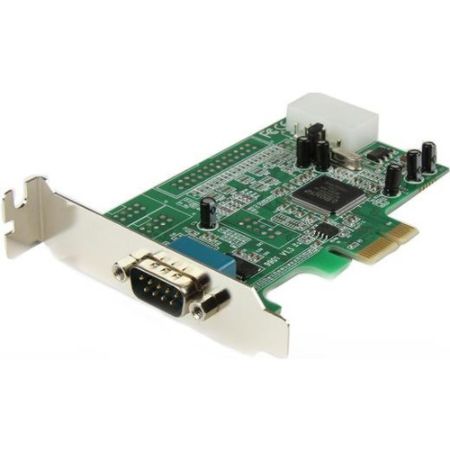

StarTech.com 1-Port Low Profile Native RS232 PCI Express Serial Card With 16550 UART Item # 3414556

 |
StarTech.com 1-Port Low Profile Native RS232 PCI Express Serial Card With 16550 UART
$ 40 .99 / each $40.99
In Stock
Free delivery
Estimated delivery 3-7 business days

  • PCI Express host interface.
  • Includes 1 port.

    Description

    The PEX1S553LP PCI Express serial card turns a PCI Express slot into an RS232 (DB9) serial connection. The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.The PCI Express RS232 serial adapter card is compatible with a broad range of operating systems, including Windows 2000/XP/2003/Vista /Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor). This product is a replacement for the PEX1S552LP card.

    • PCI Express host interface.
    • Includes 1 port.
    • 9-pin DB-9 Male RS-232 Serial External port.
    • UART Type: 16550.
    • Plug-in card.
    • Supports PC platform.
    • 460Kbps data transfer rate.
    Back To Top

    Product Details

    Item # 3414556
    OfficeMax # 23568284
    Manufacturer # DN9011
    maximum data transfer rate 460 kbit/s
    Additional Information Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance.; Pre-configured for low profile/half-height systems but includes a full profile bracket for versatility.; Easy to install and use with full step-by-step instructions saving time and hassle.; Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS; Windows Server® 2012, 2008 R2, 2003
    package contents 1 Port Low Profile PCI Express Serial Card - 16550; Full Profile Bracket
    Product Name 1 Port Low Profile PCI Express Serial Card - 16550
    manufacturer InFocus Corporation
    Host Interface PCI Express
    brand name StarTech
    Card Height Dual-profile
    UART Type 16550
    Number of Serial Ports (External) 1
    Platform Supported PC
    form factor Plug-in Card
    warranty length 2-year limited
    model name PEX1S553LP
